What Is A Vac Truck? A Comprehensive Guide

The Short Answer: Vacuum trucks (also called vac trucks) are specialized vehicles equipped with powerful vacuum systems that can remove and transport dry materials, liquids, and sludge. These industrial vacuum trucks are valuable tools for farmers and silo operators who need efficient cleaning and material handling solutions. For farmers and agricultural operators, vac trucks are game-changers in maintaining clean, safe, and productive storage facilities. These heavy-duty applications use strong vacuum power to clean out silos, remove grain debris, and handle various materials that regular equipment just can’t manage. They’re particularly useful for clearing out tough-to-reach spots in tall silos and handling both wet and dry agricultural materials. In this guide, you’ll learn everything you need to know about vacuum truck services – from how they work to the different types available. We’ll cover their main uses in agriculture, what makes them different from standard cleaning equipment, and how to pick the right one for your farm operations. Whether you’re considering getting a vac truck service or just want to understand these machines better, we’ve got you covered with practical, straight-to-the-point information that will help you make smart decisions for your agricultural operation.

How Vacuum Trucks Work

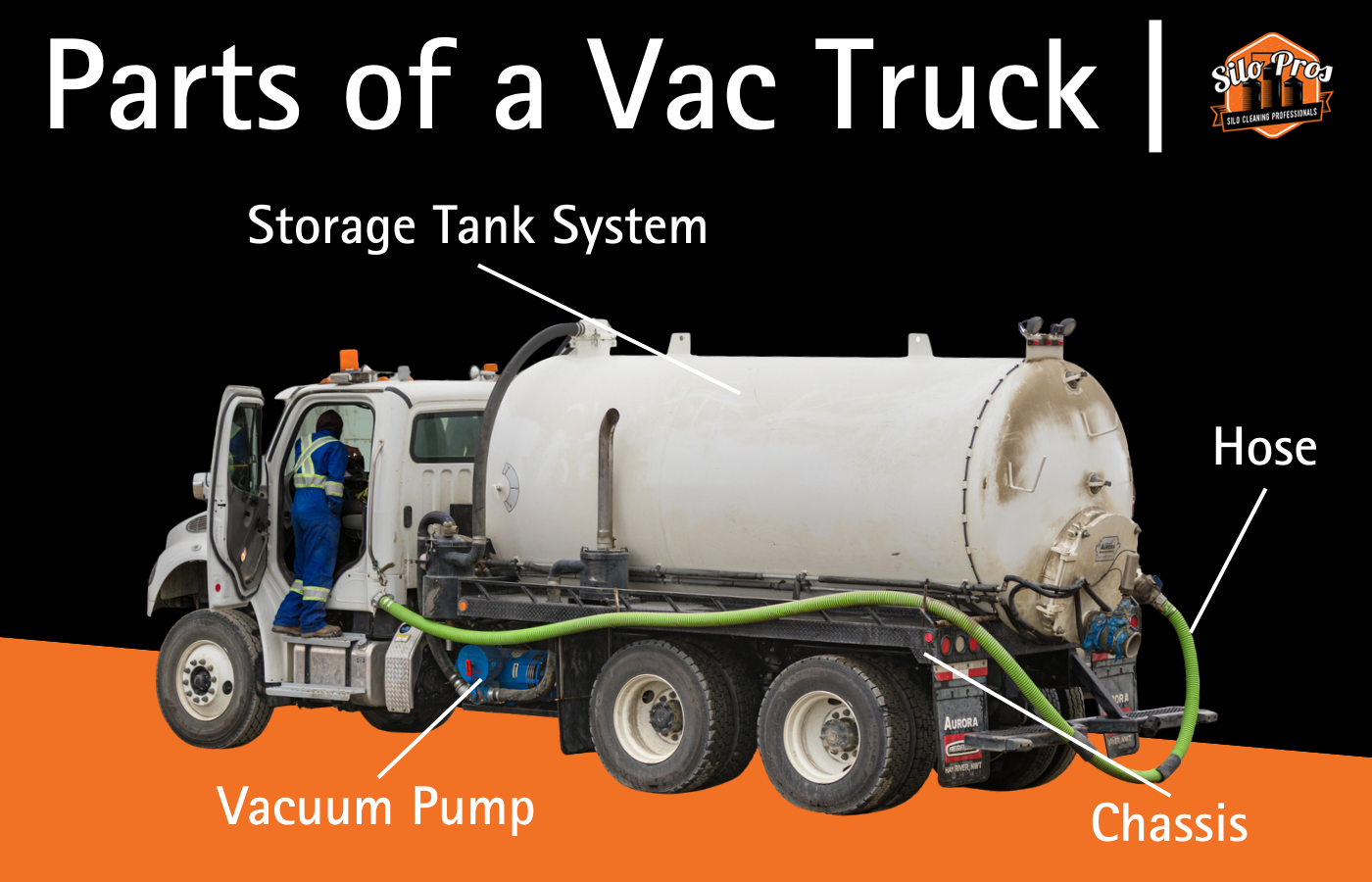

Basic Components

Storage Tank System: The heart of a vac truck is its storage tank system, which includes a heavy-duty cylindrical tank mounted on an industrial truck. These tanks are built with high-quality materials and special coatings to handle different types of waste. Chassis:The chassis on a vac truck (vacuum truck) is the base framework that supports the entire vehicle, including the engine, cab, wheels, and drivetrain. It serves as the foundation onto which the vacuum system and other components are mounted. The chassis determines the truck’s load capacity, power, and mobility, making it a critical part of the vac truck’s performance and suitability for different job types. Vacuum Pumps: The vacuum pumps sit between the tank and truck engine, converting engine power into suction force. Common types include rotary vane and liquid ring pumps, each suited for different materials and job conditions. The efficiency and strength of the vacuum pump directly impact the truck’s performance on-site. Hose: High-quality hoses connect to the tank through a system of primary and secondary shutoff valves that control material flow. Made from durable, flexible materials like rubber or reinforced plastic, the hose is designed to handle a wide range of substances, including liquids, sludge, and solids.

Operating Process

The vacuum pump creates a powerful vacuum by forcing air out of the tank, dropping the pressure inside. When operators open the suction valves, the pressure difference pulls in outside air along with any materials in front of the hose. The industrial vacuum is strong enough to lift up heavy materials like wet grain, sand, and thick liquids. The collected debris gets stored in the main tank until it’s full. When it’s time to empty, operators use the tank’s bottom valve or connect to a discharge hose to remove the contents.

Safety Features

Vacuum trucks come loaded with safety systems to protect both operators and equipment. Automatic shutoff valves kick in when the tank reaches capacity to prevent overflow. High pressure relief valves make sure the vacuum pressure stays at safe levels and won’t damage the tank. The filtration system catches debris before it can reach and harm the vacuum pump. These filters also stop harmful particles from being released into the air during operation.

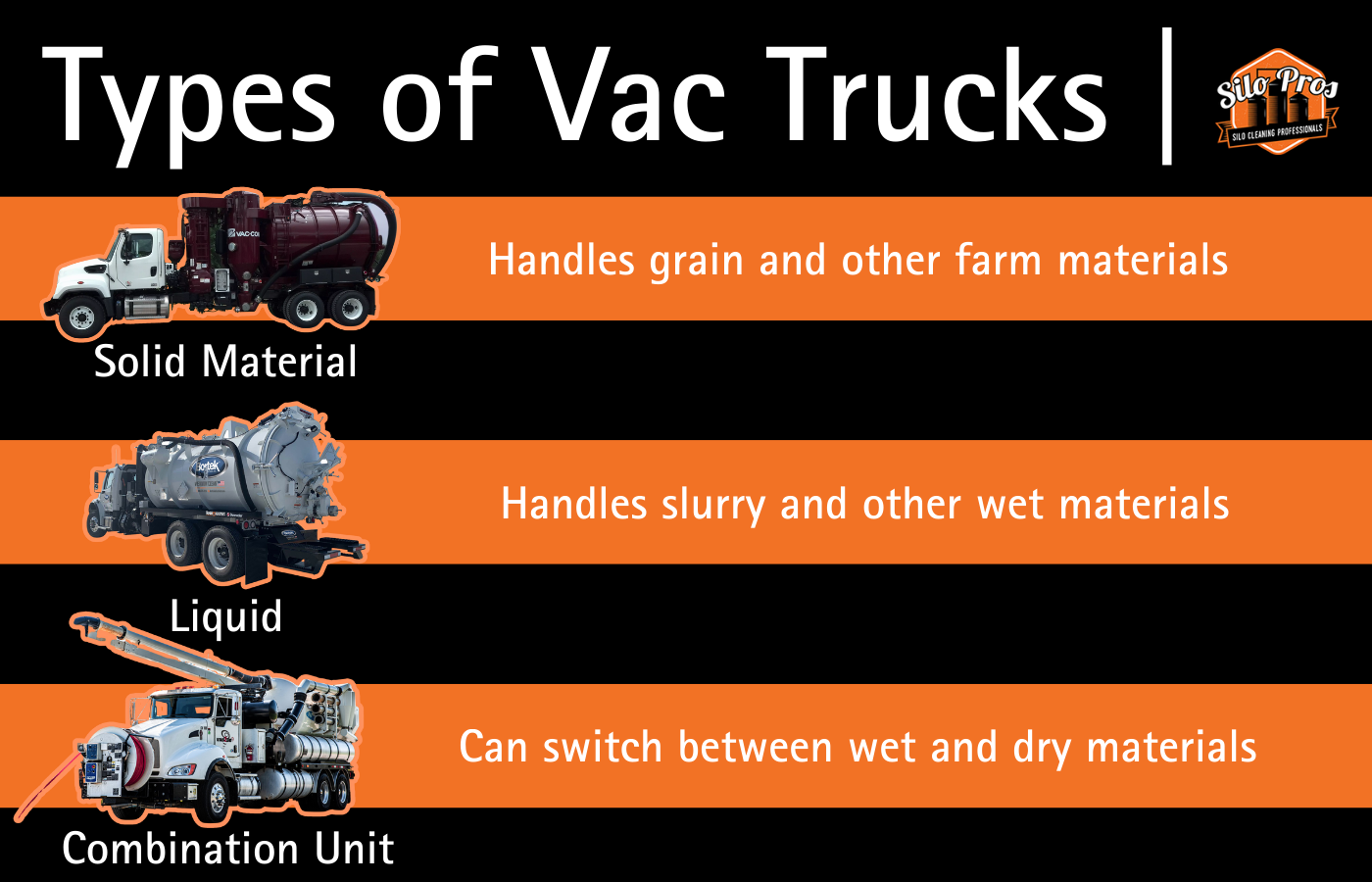

Types of Vac Trucks for Agricultural Use

Dry Material Vac Trucks

Dry material industrial vacuum trucks come equipped with heavy-duty tanks and specialized filtration systems perfect for handling grain and other farm materials. These workhorses feature industrial vacuum pumps that can move a great deal of material per minute. The tanks include multi-stage filters that trap fine dust and prevent it from escaping, making them ideal for grain handling operations. A cyclone separator system helps manage larger debris, dropping it into the storage tank while allowing air to flow through the vacuum system.

Liquid Vacuum Trucks

Built specifically for handling wet materials and slurry, liquid vacuum trucks feature stainless steel or specially coated carbon steel tanks that resist corrosion from waste and farm chemicals. These vacuum truck units come with high-pressure pumps capable of displacing up to 400 gallons per minute through hose systems. The tanks include automatic washing systems that clean the interior after each use, extending the life of the equipment and preventing cross-contamination between loads.

Combination Units

Combination vac trucks offer versatile attachments for farm operations that handle various materials. These industrial vacuum loaders can switch between dry and wet material handling with simple control adjustments. The tanks feature removable baffles and filtered sections that can be configured based on the job site needs. Many models include high-pressure water systems for cleaning out storage tanks and silos. While they may cost more upfront, combination vacuum trucks save money long-term by handling multiple farm tasks with one piece of equipment.

Common Agricultural Applications

Silo Cleaning

Vacuum trucks make quick work of grain removal in silos, pulling out old product right down to the concrete floor. The powerful industrial vacuum handles packed grain and stubborn buildup along silo walls without damaging the structure. For wall cleaning, the vacuum system removes dust, mold, and debris that builds up over time. Floor clearing becomes straightforward as these vac trucks can pull material from corners and tight spots regular equipment can’t reach.

Feed Handling

Moving feed between storage areas gets done faster with vac trucks compared to manual methods. The vacuum system transfers material directly from one storage tank to another without spillage. When it comes to storage management, these industrial vacuum trucks help rotate feed stock by quickly moving product between bins. For those inevitable spills around loading areas, the vacuum system cleans up scattered waste before it attracts pests or creates safety hazards.

Maintenance Tasks

Regular equipment cleaning extends the life of your agricultural machinery. Vac trucks remove debris from combines, grain dryers, and conveyor systems without the mess of high pressure washing. For drainage system upkeep, they clear out clogged catch basins and culverts that could lead to flooding. The vacuum trucks also handle routine waste management tasks like basin cleaning and removing standing water from low spots around grain storage areas. Hydro Excavation Cleanup Hydro excavators are specialized machines that use high-pressure water to break up soil and a powerful vacuum system to remove the debris, offering a safer and more precise alternative to traditional digging methods. This non-destructive approach, known as a hydro excavation service, is ideal for exposing underground utilities without causing damage. After the soil and debris are loosened by hydro excavators, vacuum trucks are used to efficiently suction and transport the slurry away from the excavation site. These vac trucks play a crucial role in keeping the work area clean and reducing environmental impact. Together, hydro excavation services and vac trucks provide a clean, accurate, and minimally invasive solution for a wide range of digging projects.

Take Your Vac Truck Maintenance to the Next Level

A vacuum truck combines power and precision to tackle your toughest farm cleanup jobs. These industrial vacuum trucks save time and money by doing the work of several operators, while protecting your valuable equipment and infrastructure from damage during cleanouts. Using a vac truck for silo cleaning and maintenance costs less than manual cleaning methods when you factor in labor and safety. The quick work these vacuum trucks make of debris removal means your silos get back into service faster, reducing operational downtime. Plus, the thorough industrial cleaning they provide helps prevent product contamination and extends the life of your storage systems. Silo Pros offers a variety of services, bringing decades of experience in vacuum truck services across the region. Our specially-trained operators know how to clean every type of silo safely and completely. Ready to see the difference professional high-quality cleaning can make? Contact us to schedule service or visit our website to learn more about our complete lineup of silo maintenance solutions.
